A Wi-Fi module can deliver excellent throughput on an open evaluation board and lose most of its range after the same board is installed behind an aluminum rear cover. Moving the access point closer may rescue the demo. It does not rescue the design.
Metal changes antenna impedance, blocks or redirects radiation, and creates deep pattern nulls. In a fully closed metal enclosure, an internal 2.4 or 5 GHz antenna is usually the wrong starting point. Plan an external antenna or a deliberate nonmetallic RF window before the industrial design is frozen.
Choose the enclosure strategy first
The antenna is part of the mechanical architecture. Its location affects cosmetics, sealing, mounting, cable routing, certification, and service. Waiting for the finished enclosure and then searching for “somewhere to stick the antenna” produces unpredictable results.
| Strategy | Advantages | Main risks | Best fit |
|---|---|---|---|
| External whip antenna | Strong clearance from metal; replaceable | Connector cost, vandalism, ingress sealing | Industrial cabinets and gateways |
| Remote adhesive antenna behind plastic | Flexible location and low external profile | Cable loss, assembly variation, adhesive aging | Terminals with a plastic bezel or window |
| PCB or chip antenna at an RF window | Low BOM and compact assembly | Requires controlled keep-out and final tuning | High-volume products with stable mechanics |
| Antenna integrated into plastic front | Good separation from rear metal shell | Bezel and coating changes affect tuning | Touch panels and wall controllers |
| Antenna fully inside metal box | Hidden and mechanically protected | Severe shielding and distorted pattern | Rarely acceptable without engineered apertures |
A small slot in the metal does not automatically become a good RF window. Aperture size, position, nearby ground, coating, internal brackets, display frame, and mounting wall all matter. Work with the mechanical team on a repeatable geometry, not a hand-cut prototype.
If the product uses a touch display, the front assembly may contain conductive coatings, metal frame, shielding tape, and ground springs. “Plastic front” can still be an unfriendly antenna location.
Decide between module antenna and external RF port
Modules with an integrated PCB or chip antenna reduce RF design work only when their layout rules can be followed. The required edge placement and keep-out must remain clear on every PCB layer and in the enclosure. Batteries, displays, heatsinks, cable shields, and metalized paint inside that volume can detune the reference design.
A module with a controlled RF connector gives more freedom. Route a short coaxial cable to an antenna location chosen around the complete product. This adds cable loss, connector mating risk, and factory handling, but it often wins in a metal enclosure.
Specify the exact module and antenna combination. Changing module variant, coax length, connector, enclosure coating, or adhesive antenna is an RF change. Put those items under the Android SBC lifecycle and change-control plan.
Preserve the 50-ohm path
Between radio and antenna, keep the RF path controlled. Use the module vendor’s stack-up guidance for a 50-ohm transmission line, keep it short, avoid sharp corners, and maintain continuous ground reference. Add ground stitching where recommended and do not route digital signals through the antenna keep-out.
Leave a pi matching network near the antenna feed, even if the first build uses a zero-ohm series part and unpopulated shunts. It provides a practical tuning point after the complete enclosure exists. Copying matching values from a reference board into different plastic, metal, stack-up, and cable geometry is not tuning.
Tiny coax connectors need strain relief. Repeated lid removal can rotate an adhesive antenna, unseat a micro connector, or pinch the cable against a screw boss. Define the routing in the mechanical drawing and photograph the approved assembly.
For external antennas, treat the bulkhead connector, cable, gasket, and chassis bond as one assembly. A loose bulkhead changes both RF and ingress behavior.
Design 2.4, 5, and 6 GHz coverage deliberately
Lower frequencies generally tolerate path loss and obstruction better, but the antenna still needs appropriate bandwidth and placement. A dual-band antenna may be well matched in free space and poor at one band after installation.
If the radio supports MIMO, use both antennas. Place them with enough isolation and useful pattern diversity; simply putting two identical antennas side by side can make both see the same null. Orthogonal orientation may help, but the final enclosure decides the actual correlation.
Coexistence also matters. Wi-Fi, Bluetooth, LTE/5G, GNSS, switching regulators, display clocks, USB 3.x, and poorly shielded cables can share a small product. The Wi-Fi and Bluetooth integration guide covers software and interface considerations; the antenna design must add simultaneous-radio testing on the real assembly.
Do not ignore mounting. A wall-mounted terminal may sit against concrete, steel, or an equipment cabinet. Test the required installations, because a pattern that looks acceptable in free space can develop a null toward the access point when mounted.
Tune with the complete product
Use a vector network analyzer to inspect return loss or impedance at the antenna reference plane. Measure the board and antenna in the final enclosure with display, cables, heatsink, battery, coating, and mounting hardware installed. Hold the product as it will be serviced or used when human proximity is relevant.
Matching improves power transfer at the feed. It cannot remove a metal shield or repair a radiation pattern blocked in the required direction. This is a common trap: an attractive S11 trace does not prove good over-the-air efficiency.

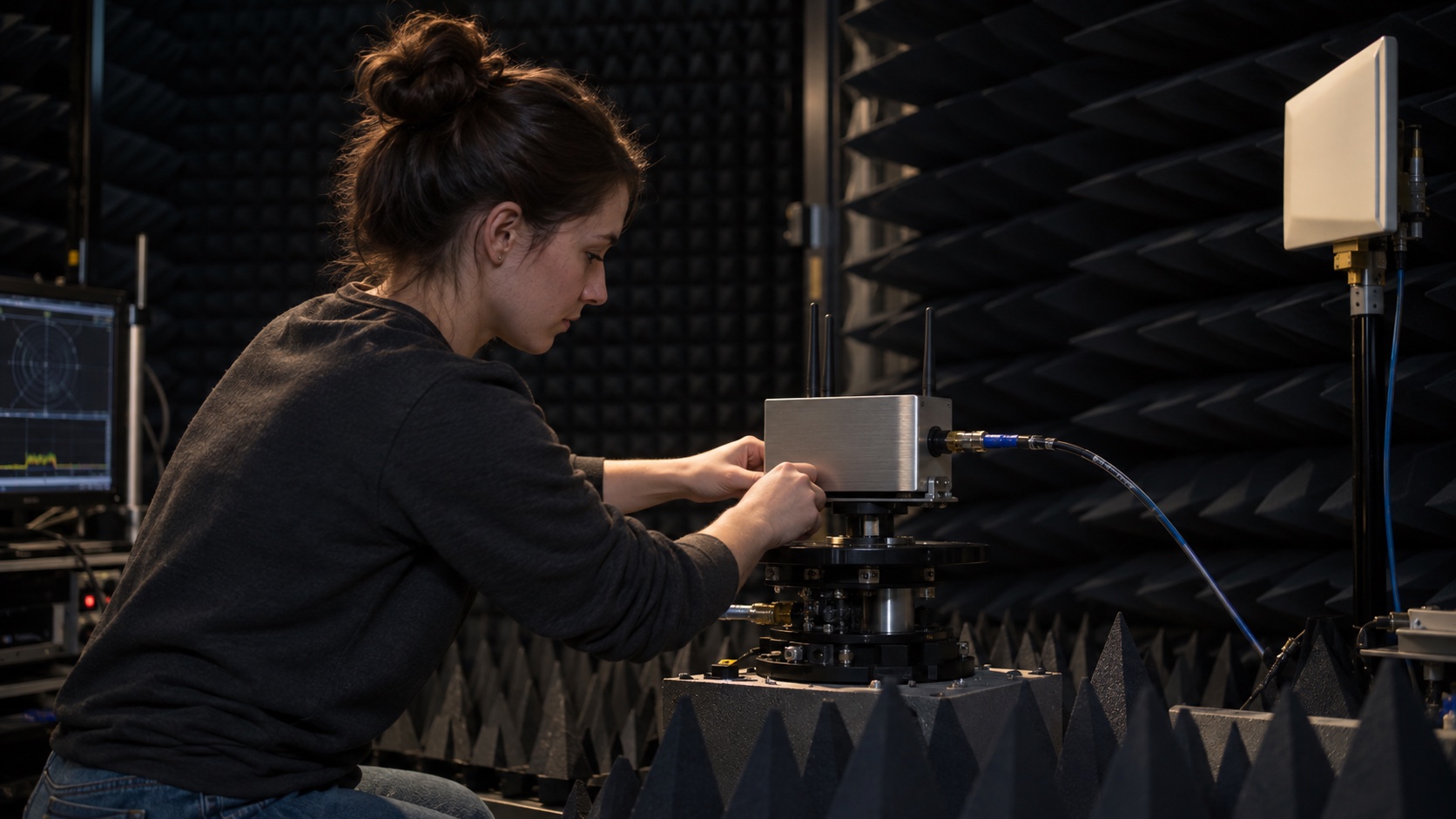

Use chamber or qualified OTA measurements for radiated performance. Track total radiated power, receiver sensitivity or equivalent link metrics, efficiency, pattern, isolation, and band coverage as appropriate. For development, throughput and packet-error tests around a turntable are useful, but they should be correlated with controlled measurements.
Test the whole Android radio path
Android adds firmware, driver, regulatory configuration, power management, roaming, and application behavior. Validate the country configuration intended for shipment, supported channels, transmit-power policy, suspend/resume, and reconnection after an access point restarts.
RSSI alone is noisy and implementation-dependent. Record throughput, latency distribution, packet loss, reconnect time, and failure rate at defined attenuations and orientations. Use the same access point, channel plan, traffic tool, and firmware when comparing builds.
| Test condition | What to vary | What to record |
|---|---|---|
| Free-space baseline | Board and antenna outside enclosure | Efficiency or link baseline by band |
| Final enclosure | Complete production mechanics | Detuning, pattern, throughput, packet loss |
| Product orientations | Front, rear, edges, installed angle | Worst-direction margin |
| Mounting surfaces | Drywall, concrete, steel cabinet | Installation sensitivity |
| Radio coexistence | Wi-Fi plus Bluetooth/cellular/USB 3.x | Desense, throughput, latency |
| Temperature range | Cold, room, hot operating points | Frequency shift and reconnect behavior |
| Manufacturing tolerance | Multiple boards, antennas, cable routes | Unit-to-unit spread |
| Weak network | Defined attenuation and interference | Roaming, retry, and recovery behavior |
Run several production-representative units. A single hand-tuned sample can hide antenna tolerance, connector seating, cable placement, and coating variation.
Plan certification without confusing it with performance
Using a pre-certified radio module can reduce part of the compliance workload, but it does not guarantee the finished host product meets every regulatory condition or performs well. Antenna type and gain, RF cable, host emissions, placement, and country configuration can affect the allowed integration path.
Lock the antenna bill of materials and keep supplier documentation with the release. If purchasing proposes an “equivalent” antenna, repeat matching, OTA, coexistence, and compliance review. Antennas with the same shape and connector can behave very differently.
The Android SBC procurement checklist should include module regulatory identifiers, permitted antennas, change-notification terms, and long-term availability.
Frequently asked questions
Can Wi-Fi work through a metal enclosure?
Radio energy can escape through seams and apertures, but performance is usually directional and hard to control. A designed external antenna or nonmetallic RF window is far more predictable.
Is a strong RSSI enough to approve the design?
No. RSSI at one orientation says little about pattern nulls, transmit performance, packet loss, coexistence, or unit variation. Use controlled multi-orientation link tests and radiated measurements.
Can antenna matching fix poor placement?
Matching can correct feed impedance within limits. It cannot recover energy blocked by a closed metal shell or create coverage in a direction the enclosure suppresses.
Bottom line
For a metal Android device, make antenna location an enclosure requirement. Provide a real RF window or external path, preserve the feed and keep-out, tune the complete assembly, and measure over the air in actual mounting conditions. The open-board result is only a radio check; the enclosure result is the product.
